SJOOW and SOOW Flexible Cords

Maximum flexibility.
Heavy-duty performance.

Tekima SJOOW and SOOW flexible cords are designed for portable and industrial applications in the North American market, where flexibility, durability, and reliability are essential requirements.

Both cable families feature thermoset insulation and an oil-resistant jacket, making them suitable for use in damp and wet locations. They are available with c(UL)us and CSA approvals.

SJOOW  Series 80140 / 80160 | 300 V

For tools, portable equipment, and motors, including applications involving exposure to water. Series 80140 is the standard version, rated at 300 V with an operating temperature range of -40°C to +90°C.

Series 80160 is also available upon request for higher operating temperatures (-50°C to +105°C).

Download the SJOOW datasheet

SOOW   Series 80120 / 8012S  |  600 V

For industrial, control, and signaling applications, including demanding environments and Hazardous Locations Class I and Class II. Rated at 600 V, with an operating temperature range of -40°C to +90°C.
Available with up to 60 conductors and conductor sizes up to 2 AWG; offered in both unshielded (Series 80120) and shielded (Series 8012S) versions.

Download the SOOW datasheet

SJOOW or SOOW?

The choice depends primarily on voltage, application and the required level of service.

SJOOW SOOW
Voltage 300 V 600 V
Service rating Hard Usage Extra Hard Usage
Typical application Portable equipment Industrial applications
Conductors 2–4 up to 60
Sizes 18–10 AWG 18–2 AWG

SOOW for Hazardous Locations

Extra-Hard-Usage flexible cords can be used for flexible connections in Hazardous Locations when installed in accordance with the applicable electrical code requirements.

Class I — NEC Article 501.140

Class II — NEC Article 502.140

Zone 1, 2, 20, 21, 22 — CE Code, CSA C22.1, Section 18

This makes the SOOW series particularly well suited for process facilities and industrial environments where classified atmospheres may be present.

Built for demanding industrial environments

Both SJOOW and SOOW feature thermoset insulation and an oil-resistant thermoset outer jacket.

Designed for flexible applications, they are suitable, in accordance with their respective certifications, for use in damp and wet locations.

The cable markings also include SUN & WATER RES, making them suitable for installations exposed to demanding environmental conditions.

Designed for the USA and Canada

For machine and equipment builders supplying the USA and Canada, using properly certified components helps simplify compliance with project requirements.

Tekima SJOOW and SOOW series feature UL/CSA approvals and are manufactured in accordance with the main applicable North American standards:

  • UL 62
  • CSA C22.2 No. 49
  • NFPA 70 – National Electrical Code
  • CSA C22.1 – Canadian Electrical Code

Flexible, durable and ready for North American applications.

Request information

UL Processed Wire

Upon request, UL-certified cut-to-length service – Processed Wire is also available, allowing you to receive the cable pre-cut to the required lengths.

Available in CAD/CAE libraries

Our product range data is available in the most widely used CAD/CAE design software.

L'articolo SJOOW and SOOW Flexible Cords proviene da Tekima US - Canada.

]]> SJOOW and SOOW Flexible Cords – Landing page https://tekima.com/us/flexible-cord-sjoow-and-soow-landing/ Fri, 28 Aug 2026 09:00:00 +0000 https://www.tekima.com/?p=900002 Maximum flexibility. Heavy-duty performance.

L'articolo SJOOW and SOOW Flexible Cords – Landing page proviene da Tekima US - Canada.

]]>

Need a quote for SJOOW or SOOW flexible cords? Our team will get back to you within the same business day.

Request a Quote

Request a Quote

Fill in the form: one of our sales engineers will reply within the day

[contact-form-7]

SJOOW and SOOW Flexible Cords

Maximum flexibility.
Heavy-duty performance.

Tekima SJOOW and SOOW flexible cords are designed for portable and industrial applications in the North American market, where flexibility, durability, and reliability are essential requirements.

Both cable families feature thermoset insulation and an oil-resistant jacket, making them suitable for use in damp and wet locations. They are available with c(UL)us and CSA approvals.

SJOOW  Series 80140 / 80160 | 300 V

For tools, portable equipment, and motors, including applications involving exposure to water. Series 80140 is the standard version, rated at 300 V with an operating temperature range of -40°C to +90°C.

Series 80160 is also available upon request for higher operating temperatures (-50°C to +105°C).

Download the SJOOW datasheet

SOOW   Series 80120 / 8012S  |  600 V

For industrial, control, and signaling applications, including demanding environments and Hazardous Locations Class I and Class II. Rated at 600 V, with an operating temperature range of -40°C to +90°C.
Available with up to 60 conductors and conductor sizes up to 2 AWG; offered in both unshielded (Series 80120) and shielded (Series 8012S) versions.

Download the SOOW datasheet

SJOOW or SOOW?

The choice depends primarily on voltage, application and the required level of service.

SJOOW SOOW
Voltage 300 V 600 V
Service rating Hard Usage Extra Hard Usage
Typical application Portable equipment Industrial applications
Conductors 2–4 up to 60
Sizes 18–10 AWG 18–2 AWG

SOOW for Hazardous Locations

Extra-Hard-Usage flexible cords can be used for flexible connections in Hazardous Locations when installed in accordance with the applicable electrical code requirements.

Class I — NEC Article 501.140

Class II — NEC Article 502.140

Zone 1, 2, 20, 21, 22 — CE Code, CSA C22.1, Section 18

This makes the SOOW series particularly well suited for process facilities and industrial environments where classified atmospheres may be present.

Built for demanding industrial environments

Both SJOOW and SOOW feature thermoset insulation and an oil-resistant thermoset outer jacket.

Designed for flexible applications, they are suitable, in accordance with their respective certifications, for use in damp and wet locations.

The cable markings also include SUN & WATER RES, making them suitable for installations exposed to demanding environmental conditions.

Designed for the USA and Canada

For machine and equipment builders supplying the USA and Canada, using properly certified components helps simplify compliance with project requirements.

Tekima SJOOW and SOOW series feature UL/CSA approvals and are manufactured in accordance with the main applicable North American standards:

  • UL 62
  • CSA C22.2 No. 49
  • NFPA 70 – National Electrical Code
  • CSA C22.1 – Canadian Electrical Code

Flexible, durable and ready for North American applications.

Request information

UL Processed Wire

Upon request, UL-certified cut-to-length service – Processed Wire is also available, allowing you to receive the cable pre-cut to the required lengths.

Available in CAD/CAE libraries

Our product range data is available in the most widely used CAD/CAE design software.

Headquarters

Tekima S.r.l.
Via Carlo Signaroli, 3
25010 Borgosatollo (BS)
Italy

USA Branch

Tekima North America, Inc.
952 South Dorset Road
45373 Troy
Ohio
USA

Canada Branch

Tekima Canada, Inc. 22 Adelaide St W, Ste 3400
M5H 4E3 Toronto
Ontario
Canada

APAC Branch

Tekima Asia Pacific Pte. Ltd.
30 Cecil Street
#19-08 Prudential Tower
049712 Singapore
Singapore

©2026 Tekima. All rights reserved. Tekima S.r.l. – Brescia R.E.A. number 446485 – Share Capital 400.000€ f.p. – P.IVA/C.F. 02403320985 Designed by Ideagency

L'articolo SJOOW and SOOW Flexible Cords – Landing page proviene da Tekima US - Canada.

]]> Safety Labels https://tekima.com/us/labels-store-your-safety-label-just-a-click-away/ Mon, 24 Aug 2026 08:04:54 +0000 https://www.tekima.com/?p=30220 Make residual risks clearly visible.

L'articolo Safety Labels proviene da Tekima US - Canada.

]]>

LABELS STORE
Your safety label just a click away!

The Labels Store is Tekima’s online catalog for quick and easy searching of safety labels.

How?

Filter, find, and print.
Search by category, risk level, material, and edition. Tekima’s safety labels are certified according to North American standards and can be applied to all surfaces.

Can’t find the safety label you’re looking for?
Tekima creates custom safety labels in any language you need!

Go to the Labels Store

Leave us your details, access the Labels Store and discover how to revolutionize your safety label search experience.

LABELS STORE

See the Labels Store in action

Objective: mitigate residual risks

In the design and construction of plants, machinery and equipment, the safety of the maintenance workers is a priority. Industrial environments present multiple hazards: moving machines, electricity, pneumatic energy, hydraulic energy, hot surfaces, and noise. Employees must be protected, trained, and informed, but even with the introduction of barriers or safety devices, residual risks remain, this is why safety labels play a fundamental role.

Tekima complies with American, Canadian, and European standards

OSHA (Occupational Safety and Health Administration) imposes requirements for reporting residual risks through the ANSI Z535 standard “Product Safety Signs and Labels”.

Tekima’s safety labels are produced in accordance with ANSI Z535 standards and are c(UL)us Recognized certified according to UL 969 and CSA C22.2 No.0.15 standards. In addition to the wide range of safety labels required by the NFPA 70 (NEC), UL 2011, NFPA 79, and C22.1 (CE Code) standards, Tekima adds those for the electric panel specifically produced according to the American and Canadian standards UL 508a and C22.2 No. 286.

Furthermore, Tekima’s safety labels comply with ISO 3864 for the European market.

Different materials for different surfaces

Tekima offers safety labels in various materials:

  • In PVC with adhesive layer and protective lamination, applicable to smooth surfaces or directly on machines and/or equipment.
  • In perforated and anodized aluminum, applicable to safety barriers and protection or containment grids using cable ties.

L'articolo Safety Labels proviene da Tekima US - Canada.

]]> Industrial Cables, 2026 Edition https://tekima.com/us/industrial-cables-2026-edition/ Tue, 09 Jun 2026 14:06:43 +0000 https://tekima.com/us/?p=33846 Come and visit us.

L'articolo Industrial Cables, 2026 Edition proviene da Tekima US - Canada.

]]>

The new edition of the industrial cable catalog is now available, featuring range expansions, new certifications, and technical updates.

Key updates

  • Single Core Cables
    The CT-USE certification has been introduced for Series 1070 and 1075. It has also been extended to Series 1080/1080S, single-core cables with PVC insulation and jacket.
  • Tray Cable
    Expanded range with: – Series 8110/8110S TC-ER-HL for hazardous locations. – Series 8130/8130S TC-ER in XLPE/PVC for 90°C wet location applications, also available in pairs and triads configurations. – Series 8160/8160S TC-ER in PVC-Nylon/PVC with reduced diameter, also available in pairs and triads configurations.
  • Flexible Cord
    CSA certification has been introduced for SOOW and SJOOW cables.
  • VFD Cables
    The OIL RES II certification has been added to Series 365S.
  • AWM Cables
    Series 345/345S is now available with a 600/1000V voltage rating.
  • ASI Interface
    New series introduced for fixed and dynamic application: 72000, 72100, 72110.
  • Ethernet Cables
    The 75700 Series is now available with voltage rating up to 1000V, enabling installation alongside power cables.
  • Logistics
    A new Cable Box 50×50 cm packaging option has been introduced, in addition to the 40×40 cm format, for Series 911.

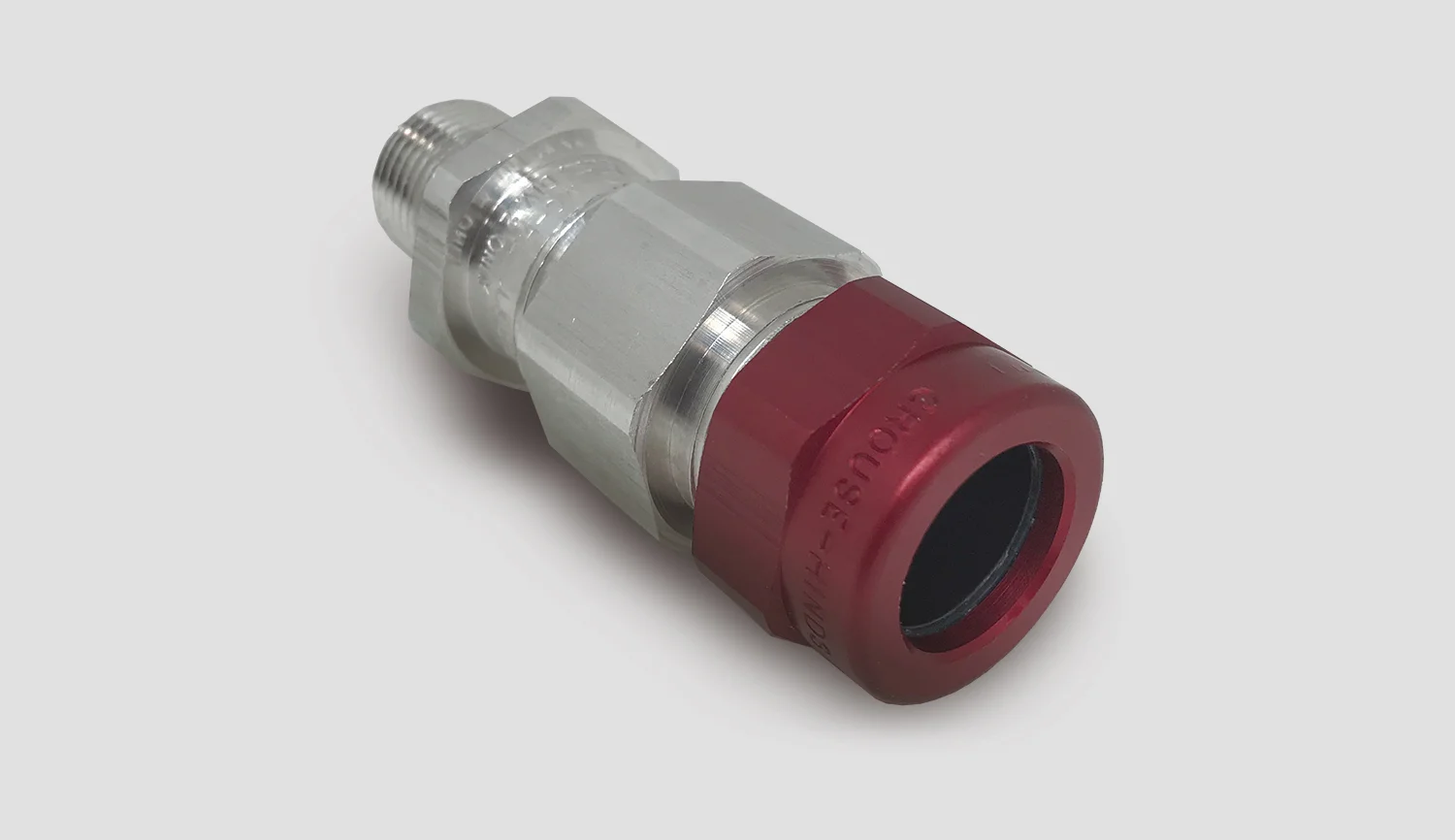

  • Cable Glands
    The range has been expanded with new models for TC and VFD cables with EMC electromagnetic protection.
  • Cable / Gland Matching Tables
    Appendix R has been added as a technical guide for selecting the correct cable gland based on the cable used: .

L'articolo Industrial Cables, 2026 Edition proviene da Tekima US - Canada.

]]> Automate 2026? Present! https://tekima.com/us/automate-show-2026/ Mon, 01 Jun 2026 11:49:41 +0000 https://tekima.com/us/?p=33830 Come and visit us.

L'articolo Automate 2026? Present! proviene da Tekima US - Canada.

]]>

Tekima is heading to Chicago, IL (USA)

We’ll be exhibiting at Automate, one of the leading events for industrial automation in North America.

For machine builders, equipment manufacturers and system integrators, cable performance is critical to ensure reliability in motion, control, and industrial communication systems.

Tekima will present:

Visit our booth

L'articolo Automate 2026? Present! proviene da Tekima US - Canada.

]]> Global Energy Show Canada? Present! https://tekima.com/us/global-energy-show-canada-2026/ Thu, 21 May 2026 09:14:59 +0000 https://tekima.com/us/?p=33802 Come and visit us.

L'articolo Global Energy Show Canada? Present! proviene da Tekima US - Canada.

]]>

Tekima is heading to Calgary (CA)

Global Energy Show Canada is one of the key meeting points for the North American energy industry.
We’ll be showcasing cable solutions designed for oil & gas and energy infrastructure application, engineered to perform in harsh and demanding environments.

Built to support safety, compliance, and reliability in the field.

Stop by our booth in the electrification pavillon to explore practical cable solutions for your applications.
Let’s talk about your next project!

Visit our booth

L'articolo Global Energy Show Canada? Present! proviene da Tekima US - Canada.

]]> Event “Machinery and Plants for North America – ed. 2026” https://tekima.com/us/event-machinery-and-plants-for-north-america-ed-2026/ Thu, 11 Dec 2025 14:25:02 +0000 https://www.tekima.com/?p=33761 Discover the details.

L'articolo Event “Machinery and Plants for North America – ed. 2026” proviene da Tekima US - Canada.

]]> Tekima is organizing the 20th edition of its flagship event, the go-to meeting for technicians, designers, and project managers.

We will gather in a prestigious venue to dive deep into the topics that matter most for system integrators, control panel builders, and manufacturers of industrial machines and plants targeting the U.S. and Canadian markets.

Alongside international professionals and industry specialists, we will explore the latest updates to NFPA 70 (NEC), CSA C22.1 (CE Code), NFPA 79, UL 2011, UL 508A, and CSA C22.2 No. 286, bringing them to life through practical cases and real-world applications.

Stay tuned as we continue to shape an event where knowledge meets real industrial challenges.

Please note that the conference will primarily be held in Italian.

When
Tuesday, March 17, and Wednesday, March 18, 2026.

Where
“Cantina Bottenago”
Via Montecanale, 6/a
25080 Polpenazze del Garda (BS)
Italy

L'articolo Event “Machinery and Plants for North America – ed. 2026” proviene da Tekima US - Canada.

]]> ADM Toronto? Present! https://tekima.com/us/adm-toronto-2025/ Tue, 14 Oct 2025 09:51:28 +0000 https://tekima.com/us/?p=33142 Come and visit us.

L'articolo ADM Toronto? Present! proviene da Tekima US - Canada.

]]>

Save the date:

🗓️ Oct. 21- 23, 2025
📍  Toronto Congress Centre – Toronto, Ontario (CA)

Tekima and the American branch are at your disposal.

We'd love to meet you there!

Stop by our booth to explore our industrial cables for the UL and CSA markets, learn about our custom solutions, and meet the Tekima team in person.

Let’s talk about how we can power your next project together!

L'articolo ADM Toronto? Present! proviene da Tekima US - Canada.

]]> SPS Atlanta? Present! https://tekima.com/us/sps-atlanta-2025/ Tue, 09 Sep 2025 08:45:59 +0000 https://tekima.com/us/?p=33133 Come and visit us.

L'articolo SPS Atlanta? Present! proviene da Tekima US - Canada.

]]>



Save the date:

🗓️ Sept 16- 18, 2025
📍  Georgia World Congress Center, Atlanta- Georgia (USA)

Tekima and the American branch are at your disposal.

Come to visit us, you'll find:

  • Industrial cables tough enough to take on your challenges.
  • Automation solutions that keep operations running at their best.
  • Smart support from a team that truly knows the industry inside and out.

Come to see why Tekima is the name behind the cable!

L'articolo SPS Atlanta? Present! proviene da Tekima US - Canada.

]]> MC-HL and TECK90-HL Cables https://tekima.com/us/mc-hl-and-teck90-hl-cables/ Wed, 07 May 2025 13:09:44 +0000 https://www.tekima.com/?p=33080 Cables MC-HL and TECK 90-HL for Hazardous Locations

L'articolo MC-HL and TECK90-HL Cables proviene da Tekima US - Canada.

]]>

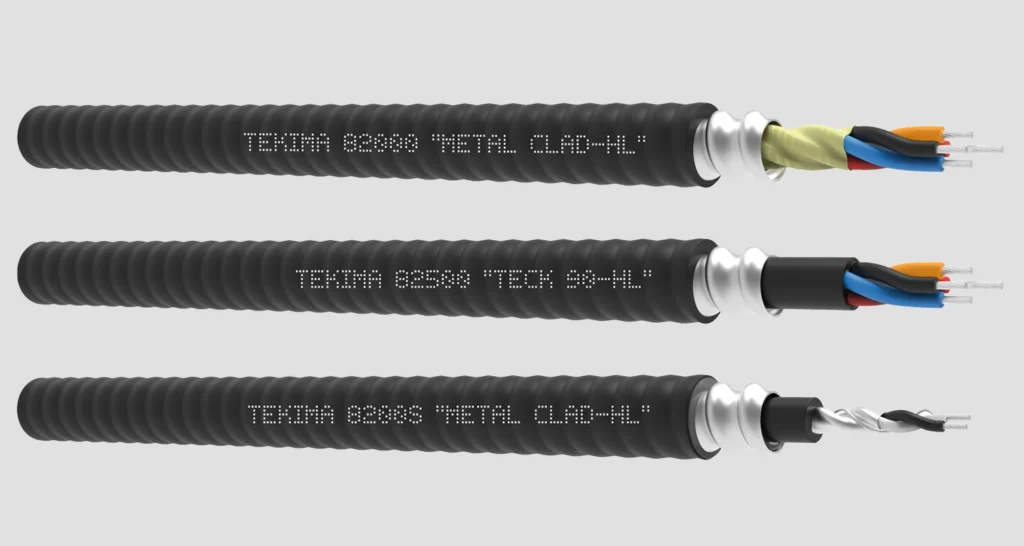

Cables for Hazardous Locations

MC-HL and TECK 90-HL cables

MC-HL (Metal-Clad) and TECK90-HL cables are designed for industrial applications in harsh environments, including Hazardous Locations.

Both types meet strict regulatory standards and are commonly used in industries such as petrochemical, mining, marine/offshore, infrastructure, chemical/pharmaceutical, and food processing.

Technical Information

MC-HL

UL Listed armored and shielded cables built for the uses specified in Article 330 of ANSI/NFPA 70 “National Electrical Code” (NEC).

Suitable for use in Class I, Division 1, Hazardous Locations.

– XLPE or PVC/Nylon insulation
– Inner PVC jacket
– Corrugated aluminum armor
– Outer PVC jacket

Up to +90°C
Up to 600V

UL 1569, UL 2225

Technical Datasheet – MC-HL Cables, unshielded

Download

Technical Datasheet – MC-HL Cables, shielded

Download

TECK 90-HL

Cavi UL Listed armati e schermati costruiti per gli usi specificati nelle sezioni 12 e 18 del CSA C22.1 “Canadian Electrical Code” (CE Code) ed idonei all’impiego in Class I, Division 1, Hazardous Locations.

– XLPE insulation
– Inner PVC jacket
– Corrugated aluminum armor
– Outer PVC jacket

Up to +90°C
Up to 600V

CSA C22.2 N. 131, CSA C22.2 N. 174

Technical Datasheet – TECK90-HL Cables

Download
Contact us for more information

Cable Glands, Fittings, and Gland Systems

HL Cable Glands

These cable glands are designed to ensure sealing on armored cables such as MC-HL and TECK90-HL and are suitable for use in Class I, Division 1, Hazardous Locations.



Their construction allows for grounding of the cable armor and installation in both vertical and horizontal positions. They are supplied complete with sealing compound.

Technical Information

HL cable gland suitable for use in hazardous areas as defined in Article 500 of ANSI/NFPA 70 “National Electrical Code” (NEC) and Section 18 of CSA C22.1 “Canadian Electrical Code” (CE Code).

Suitable for use in Class I, Division 1, Hazardous Locations.

– Body made of aluminum, brass, or stainless steel
– Sealing achieved with compound and watertight gasket

Da -25°C fino a +60°C

UL 2225, CSA C22.2 No. 174

Technical Datasheet – Cable Gland for MC-HL and TECK90

Download

From -25°C to +60°C

UL 2225, CSA C22.2 N. 174

Contact us for more information

Available in CAD/CAE Softwares

You can now find our product range in the most widely used CAD/CAE design softwares.

Learn more

L'articolo MC-HL and TECK90-HL Cables proviene da Tekima US - Canada.

]]>
