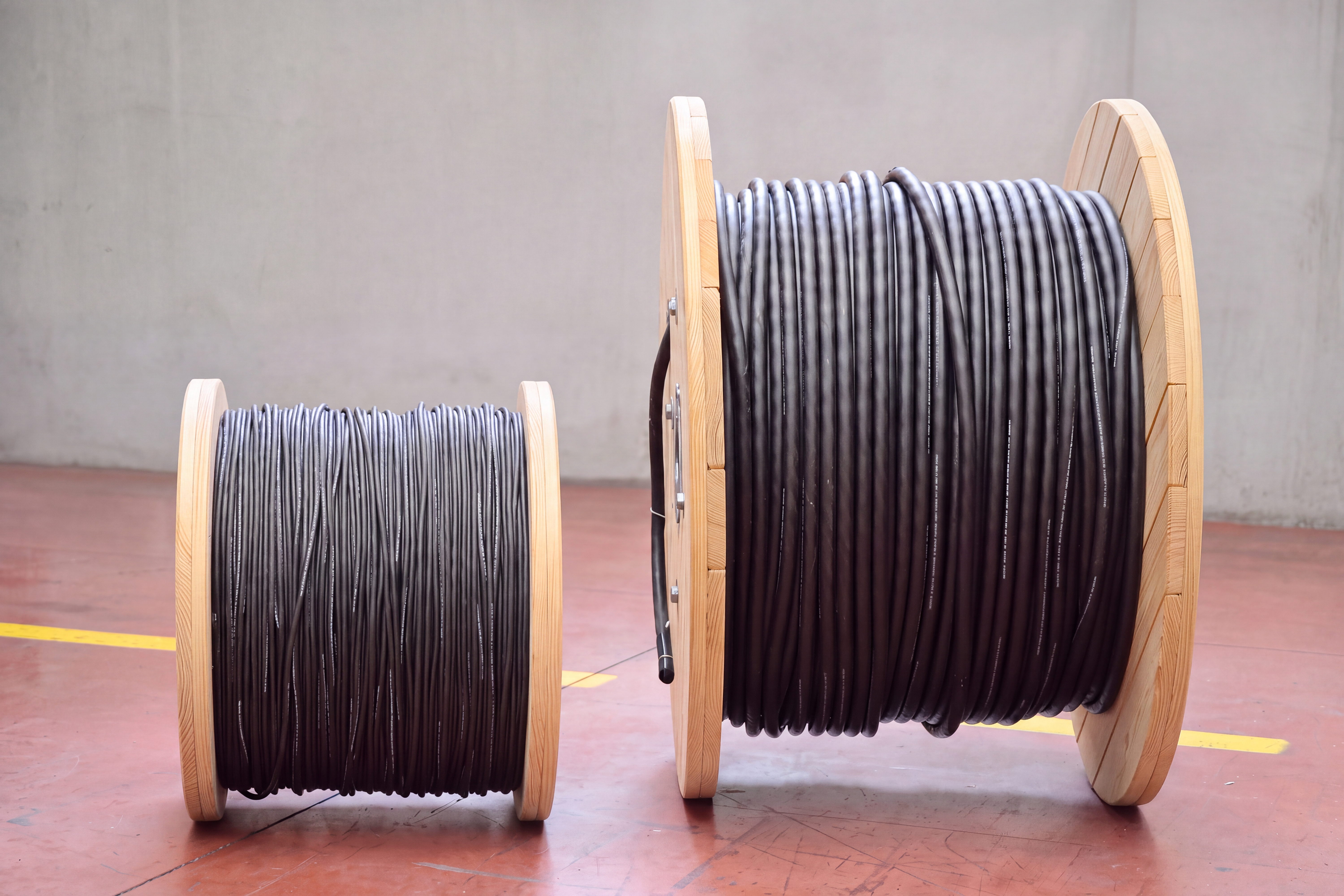

Tekima SJOOW and SOOW flexible cords are designed for portable and industrial applications in the North American market, where flexibility, durability, and reliability are essential requirements.
Both cable families feature thermoset insulation and an oil-resistant jacket, making them suitable for use in damp and wet locations. They are available with c(UL)us and CSA approvals.
SJOOW Series 80140 / 80160 | 300 V
For tools, portable equipment, and motors, including applications involving exposure to water. Series 80140 is the standard version, rated at 300 V with an operating temperature range of -40°C to +90°C.
Series 80160 is also available upon request for higher operating temperatures (-50°C to +105°C).
SOOW Series 80120 / 8012S | 600 V
For industrial, control, and signaling applications, including demanding environments and Hazardous Locations Class I and Class II. Rated at 600 V, with an operating temperature range of -40°C to +90°C.
Available with up to 60 conductors and conductor sizes up to 2 AWG; offered in both unshielded (Series 80120) and shielded (Series 8012S) versions.
The choice depends primarily on voltage, application and the required level of service.
| SJOOW | SOOW | |
|---|---|---|
| Voltage | 300 V | 600 V |
| Service rating | Hard Usage | Extra Hard Usage |
| Typical application | Portable equipment | Industrial applications |
| Conductors | 2–4 | up to 60 |
| Sizes | 18–10 AWG | 18–2 AWG |
Class I — NEC Article 501.140
Class II — NEC Article 502.140
Zone 1, 2, 20, 21, 22 — CE Code, CSA C22.1, Section 18
Both SJOOW and SOOW feature thermoset insulation and an oil-resistant thermoset outer jacket.
Designed for flexible applications, they are suitable, in accordance with their respective certifications, for use in damp and wet locations.

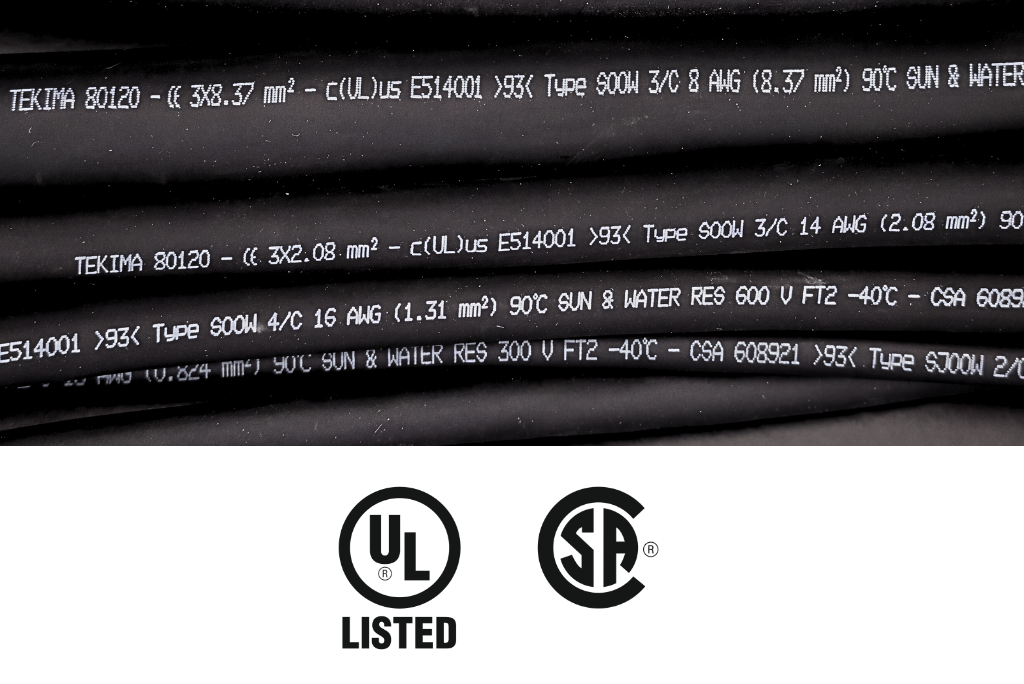

The cable markings also include SUN & WATER RES, making them suitable for installations exposed to demanding environmental conditions.
For machine and equipment builders supplying the USA and Canada, using properly certified components helps simplify compliance with project requirements.
Tekima SJOOW and SOOW series feature UL/CSA approvals and are manufactured in accordance with the main applicable North American standards:
Flexible, durable and ready for North American applications.

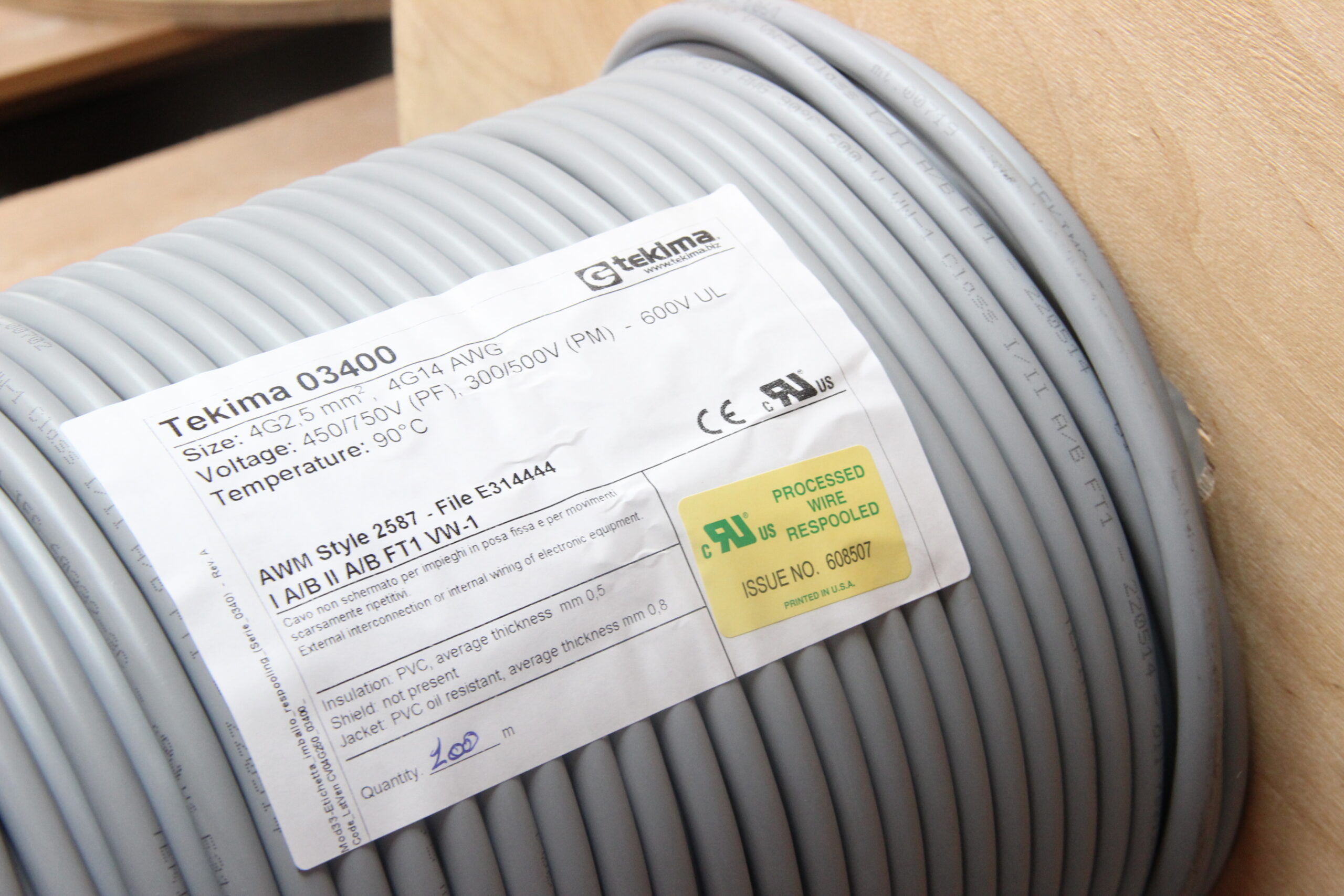

Upon request, UL-certified cut-to-length service – Processed Wire is also available, allowing you to receive the cable pre-cut to the required lengths.
